FSF-5050 Series · SAW Bandpass Filter
460 & 465 MHz SAW Bandpass Filters
FSF-5050-460M · FSF-5050-465M
Choose the frequency, bandwidth definition and operating range for your RF receiver.
- 20 MHz min. bandwidth per model
- 5.0 × 5.0 mm, eight-pad SMD
- Model-specific temperature ranges
Model Selection
Compare the Two Configurations
The shared 20 MHz minimum does not make the bandwidth specifications equivalent: one is measured at 3 dB and the other at 2 dB relative to ILmin.
3 dB bandwidth · relative to ILmin
FSF-5050-460M
460 MHz
Center frequency (Typ.)
- 3 dB bandwidth (Min. / Typ.)
- 20 MHz / 24.5 MHz
- ILmin (Typ. / Max.)
- 1.5 dB / 3.0 dB
- Operating temperature
- −40 to +85 °C
FCom combined datasheet: page 1.
2 dB bandwidth · relative to ILmin
FSF-5050-465M
465 MHz
Center frequency (Typ.)
- 2 dB bandwidth (Min. / Typ.)
- 20 MHz / 23.5 MHz
- ILmin (Typ. / Max.)
- 1.45 dB / 2.9 dB
- Operating temperature
- 0 to +50 °C
FCom combined datasheet: page 2.
Electrical Specifications
Six Key Parameters per Model
“—” means no value is specified for that column; it does not mean zero. Typical values are design guidance. Final production specifications and tolerances are defined by the applicable official test limits and shipment CoC.
FSF-5050-460M
Scroll horizontally to view all columns.
| Parameter | Min. | Typ. | Max. | Unit | Definition / condition |
|---|---|---|---|---|---|
| Center frequency | — | 460 | — | MHz | Typical |
| Minimum insertion loss, ILmin | — | 1.5 | 3.0 | dB | Minimum passband loss |
| 3 dB bandwidth | 20 | 24.5 | — | MHz | Relative to ILmin |
| Operating temperature | −40 | — | +85 | °C | Operating limits |
| Storage temperature | −40 | — | +85 | °C | Storage limits; separate from operation |
| Test source / load impedance | — | — | — | Ω | Each 50 Ω; test condition, not specified device impedance |
FSF-5050-465M
Scroll horizontally to view all columns.
| Parameter | Min. | Typ. | Max. | Unit | Definition / condition |
|---|---|---|---|---|---|
| Center frequency | — | 465 | — | MHz | Typical |
| Minimum insertion loss, ILmin | — | 1.45 | 2.9 | dB | Minimum passband loss |
| 2 dB bandwidth | 20 | 23.5 | — | MHz | Relative to ILmin |
| Operating temperature | 0 | — | +50 | °C | Operating limits |
| Storage temperature | −40 | — | +85 | °C | Storage limits; separate from operation |
| Test source / load impedance | — | — | — | Ω | Each 50 Ω; test condition, not specified device impedance |
The model datasheets do not specify separate passband attenuation limits or a reference measurement temperature. Device input and output impedances are not specified. Bandwidths are referenced to ILmin and do not define amplitude ripple.
See the combined product datasheet for measurement notes and package drawings. Confirm any additional rejection, input-power or DC requirement against the applicable FCom production specification.
Typical Applications
Application Fit
RF signal selection
Choose the 460 or 465 MHz option for the wanted signal frequency, keeping the required bandwidth and attenuation level together.
Receiver front-end filtering
Evaluate bandpass filtering ahead of later receiver stages. Check insertion loss, the required rejection and actual signal-level conditions.
Custom UHF designs
Select the model whose frequency, operating range and test conditions suit the custom RF design. Confirm the complete specification before design release.
Integration Notes
Confirm the Interface Before PCB Release
Source and load conditions
The model datasheets show a measurement circuit with 50 Ω source and load terminations and no external matching components. These test conditions do not specify intrinsic device port impedances.
Temperature and PCB interface
Preserve the selected model’s operating limits. In particular, do not use the 465 MHz storage range as its operating range. Check the pin functions, mounting view and actual source/load conditions before PCB release.
Package & Pin Assignment
Mechanical Interface
Both models use a 5.0 × 5.0 mm, 8-pad leadless SMD package with a maximum height of 1.5 mm.

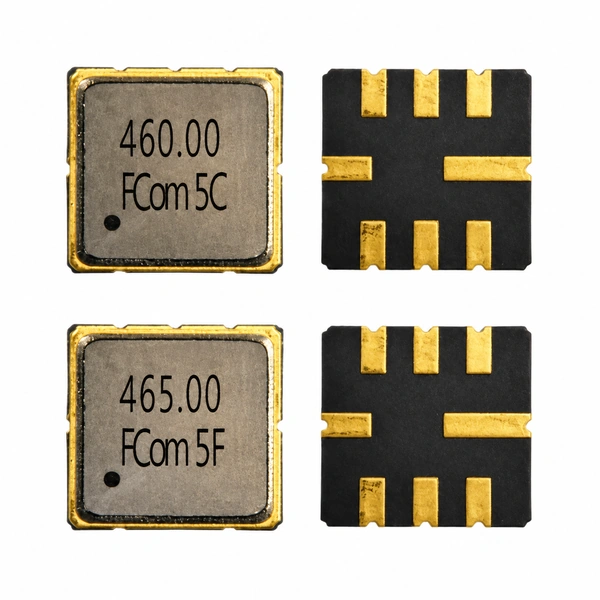

Use the applicable drawing in the combined PDF for dimensions and confirm the mounting view before PCB release. The photograph does not define pin orientation.
Pins 2 and 6 retain the FCom Input/Output designation. Confirm signal direction and the complete ordering configuration. Contact FCom for other pin-configuration requirements.
| Pin(s) | FCom function |
|---|---|
| 2 | Input / Output |
| 6 | Input / Output |
| 1, 3 | Ground |
| 5, 7 | Ground |
| 4 | Case ground |
| 8 | Case ground |
Selection and Design-In Support
Discuss Your Signal Path with FCom
Share the selected model, required signal band and bandwidth definition, source/load requirements, operating temperature, input signal and DC conditions. Include sample quantity and estimated usage.
Confirm the applicable production test limits, pin configuration and complete ordering code before design release.
Engineering Questions
Frequently Asked Questions
Do both models have the same 20 MHz bandwidth?
Both list a minimum bandwidth of 20 MHz, but at different attenuation levels relative to ILmin: 3 dB for FSF-5050-460M and 2 dB for FSF-5050-465M. Their typical values are 24.5 MHz and 23.5 MHz respectively. These definitions must remain with each value.
Can the 465 MHz model operate from −40 to +85 °C?
FSF-5050-465M has an operating range of 0 to +50 °C and a storage range of −40 to +85 °C. FSF-5050-460M specifies −40 to +85 °C for both operation and storage.
Are the device ports specified as 50 Ω?
The FCom documents specify a 50 Ω source and load for measurement. Device input and output impedances remain unspecified. The measurement circuits show no external matching components; check the actual source/load conditions and PCB implementation.
Are separate passband attenuation limits or a 25 °C test condition provided?
The model datasheets do not specify separate passband attenuation limits or a reference measurement temperature. The bandwidth definitions are relative to ILmin; a 25 °C test condition and a passband-ripple value are not specified.
Are filters with the same frequency or package interchangeable?
Frequency and package size alone do not establish interchangeability. Check the exact model, bandwidth definition, insertion-loss limits, operating range, test conditions and pin assignment. Confirm the applicable production specification and complete ordering code.
What should I include in a selection inquiry?
Provide the selected model or center frequency, required signal band and bandwidth with its attenuation level, source/load requirements, operating temperature, input signal and DC conditions, sample quantity and estimated usage.
