Voltage Controlled VCXOs Product Series

Dynamic frequency tuning interfaces developed for real-time phase alignment and clock jitter attenuation. Our VCXOs(Voltage Controlled Crystal Oscillators) portfolio provides high linearity and wide pullable frequency margins, enabling seamless integration into phase-locked loop (PLL) architectures.

Not sure where to start?

Three methods to help you narrow down your choices and find a product range that meets your design requirements.

By Pulling Range & Linearity

Filter by specific tuning parameters required for loop bandwidths. Select standard ±50 ppm pull range for stable clean tracking, or wide options exceeding ±100 ppm paired with strict linearity percentages to maintain control loop stability.

Wide Pull Range (≥100ppm)

High Linearity

By Output Format & Jitter Level

Match your system’s high-speed data requirements. Select CMOS for low-frequency local logic, or choose high-speed differential outputs (LVPECL / LVDS) providing sub-picosecond phase jitter performance for wideband infrastructure.

Differential (LVPECL/LVDS）

CMOS Output

Low Jitter (<0.1 ps)

By Sync & Broadcast Application

Secure precision alignment across communication frameworks. Optimize components for instrumentation clock cleanup modules, high-definition broadcast video instrumentation, and network synchronous digital hierarchy nodes.z

PLL & Clock Cleanup

Broadcast Video (SDI)

Network Infrastructure

Series Parametric Table

Compare by package, frequency range, tolerance, temperature range, and more. Click any Series name to download its datasheet.

Picture	Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Pullability Options	dBc/Hz @100 Hz	dBc/Hz @1 kHz	dBc/Hz @10 kHz	dBc/Hz @100 kHz	Mounting Type	Contact
	FVC-3X	3225 6-SMD	2 - 66 MHz	2.8 V, 3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	CMOS	±50 ppm to ±150 ppm	/	-107	-111	-114	SMD	Inquiry
	FVC-5X	5032 6-SMD	1.5 - 170 MHz	3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	CMOS	±50 ppm (APR)	-100	-133	-140	/	SMD	Inquiry

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Pullability Options	dBc/Hz @100 Hz	dBc/Hz @1 kHz	dBc/Hz @10 kHz	dBc/Hz @100 kHz	Mounting Type	Contact
FVC-3P-LJ	3225 6-SMD	10 - 250 MHz	2.5 V, 3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	CMOS	±50 ppm to ±150 ppm	/	-107	-111	-114	SMD	Inquiry

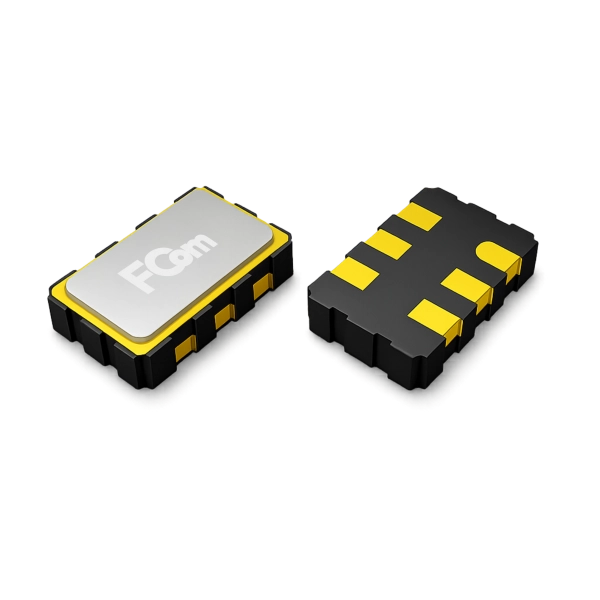

FVC-5P-LJ	5032 6-SMD	10 - 250 MHz	2.5 V, 3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	CMOS	±50 ppm (APR)	-75	-105	-125	/	SMD	Inquiry
FVC-7P-LJ	7050 6-SMD	10 - 250 MHz	2.5 V, 3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	CMOS	±50 ppm (APR)	-75	-105	-125	/	SMD	Inquiry

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Pullability Options	dBc/Hz @100 Hz	dBc/Hz @1 kHz	dBc/Hz @10 kHz	dBc/Hz @100 kHz	Mounting Type	Contact

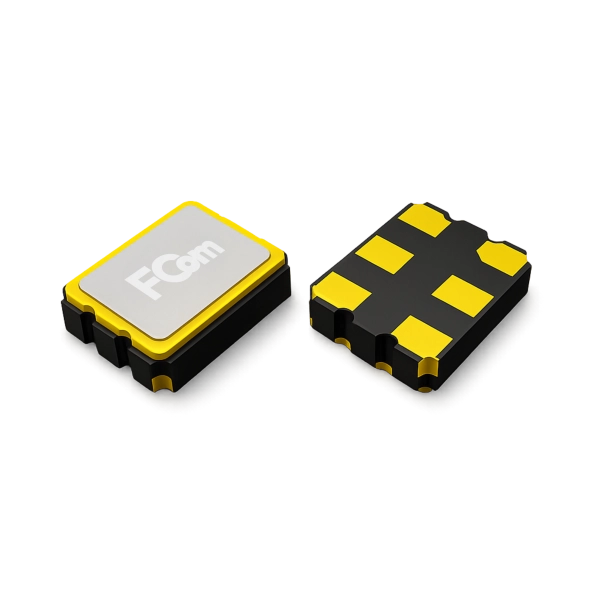

FVC-3L-PG	3225 6-SMD	10 - 1500 MHz	2.5 V, 3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	LVPECL, LVDS	±50 ppm to ±150 ppm	/	-107	-111	-114	SMD	Inquiry
FVC-5L-PG	5032 6-SMD	10 - 1500 MHz	2.5 V, 3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	LVPECL, LVDS	±50 ppm (APR)	-70	-95	-105	/	SMD	Inquiry

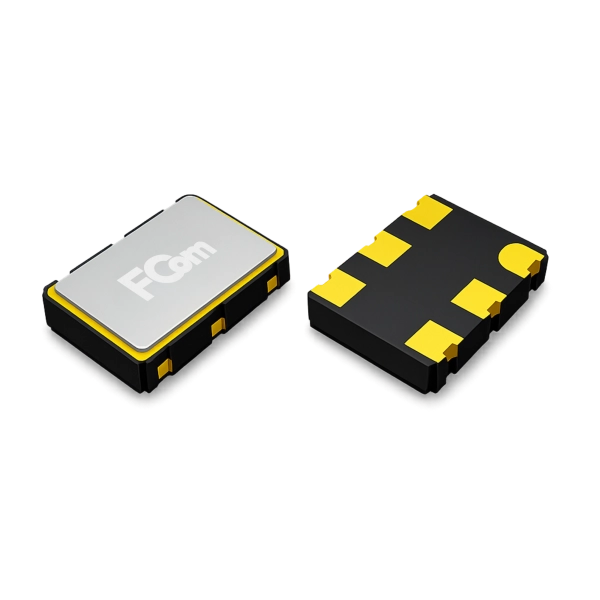

FVC-7L-PG	7050 6-SMD	10 - 1500 MHz	2.5 V, 3.3 V	±25 ppm to ±50 ppm	-40 to +105℃	LVPECL, LVDS	±50 ppm (APR)	-70	-95	-105	/	SMD	Inquiry

Matched a series? Here's what comes next.

Once you’ve narrowed it down, the real work is confirming it works on your board not just on the datasheet. To advance your prototype manufacturing, we offer the following support:

Phase 01 // Product Selection

Download Selection Guide

Compare 8 VCXO series by package, frequency, supply voltage, output, pullability and phase noise.

Phase 02 // Engineering

Validate Circuit Match

Submit your target parameters and IC model. Our laboratory verifies drive-level margins, startup conditions, and negative resistance stability.

Full-Cycle Engineering Services

Beyond standard verification, our laboratory provides complete technical support throughout your entire product lifecycle:

Contact an FCom Engineer
