Find Your Crystal Oscillators by Specification

A comprehensive portfolio of standard clock oscillators providing reliable, square-wave reference signals for digital synchronization. Select by supply voltage, package foot print, and output logic to match your architecture. Request technical data sheets and free evaluation samples within 72 hours.

Not sure where to start?

Three ways to match your needs, or quickly contact FCom’s engineering team.

By Package & Size

From ultra-miniature SMD sizes (such as 1.6 × 1.2 mm and 2.0 × 1.6 mm) designed for high-density IoT wearables and portable electronics, to robust 7.0 × 5.0 mm systems and traditional through-hole DIP-14 layouts for high-reliability industrial hardware.

Miniature SMD (≤2520)

Standard SMD

Through-Hole DIP

By Output Logic & Performance

Filter by system specifications to secure signal integrity. Choose standard CMOS/HCMOS for single-ended, low-frequency clocking, or select differential outputs like LVPECL and LVDS to minimize phase noise and jitter in high-speed datacom networking.

CMOS Output

Differential (LVPECL/LVDS)

Low Voltage

By Target Application

Optimize your vendor qualification with purpose-built series. Access low-current configurations for consumer gadgets and smart utilities, or choose AEC-Q200 qualified clock oscillators engineered to withstand automotive environments and severe thermal stress.

Consumer & IoT

Industrial Automation

Automotive Grade (AEC-Q200)

Series Parametric Table

Compare by package, frequency range, tolerance, temperature range, and more. Click any Series name to download its datasheet.

32.768 kHz & Standard XO Parametric Search

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Mount	Contact

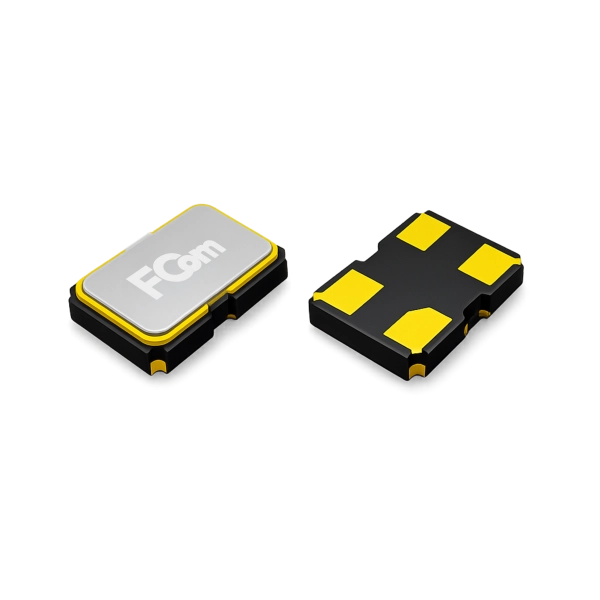

FCO-1K	1612 4-SMD	32.768 kHz	1.8 V, 2.5 V, 3.3 V	±30 ppm	-40 to +125℃	CMOS	32 μA	SMD	Inquiry
FCO-6K	2016 4-SMD	32.768 kHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	35 μA	SMD	Inquiry
FCO-2K	2520 4-SMD	32.768 kHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	35 μA	SMD	Inquiry
FCO-3K	3225 4-SMD	32.768 kHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	35 μA	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Picture	Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Mount	Contact

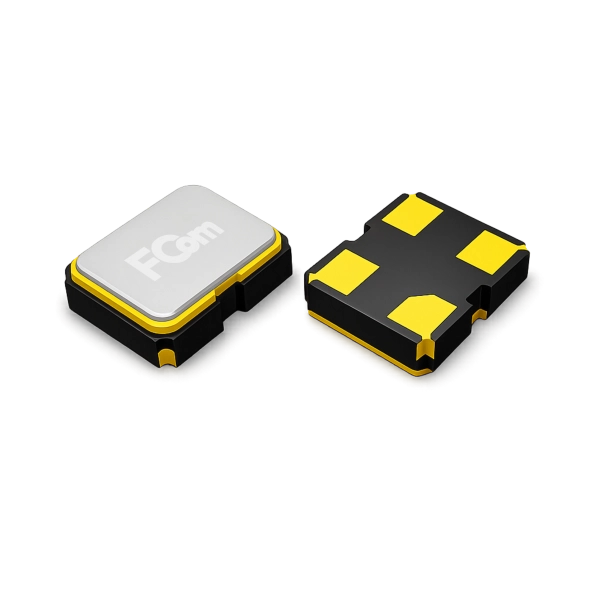

	FCO-6K-UC	2016 4-SMD	32.768 kHz	1.5 V, 1.8 V	±20 ppm	-40 to +105℃	CMOS	1.4 - 1.8 μA	SMD	Inquiry
	FCO-2K-UC	2520 4-SMD	32.768 kHz	1.5 V, 1.8 V	±20 ppm	-40 to +105℃	CMOS	1.4 - 1.8 μA	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Mount	Contact
FCO-1C	1612 4-SMD	3 - 60 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	15 mA	SMD	Inquiry
FCO-6C	2016 4-SMD	1.5 - 50 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	7 - 15 mA	SMD	Inquiry
FCO-2C	2520 4-SMD	1.25 - 125 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1.2 - 15 mA	SMD	Inquiry
FCO-200	2520 4-SMD	1.25 - 125 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1.2 - 15 mA	SMD	Inquiry
FCO-3C	3225 4-SMD	1.25 - 125 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1.2 - 15 mA	SMD	Inquiry
FCO-300	3225 4-SMD	1.25 - 125 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1.2 - 15 mA	SMD	Inquiry
FCO-5C	5032 4-SMD	0.0137 - 160 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1 - 45 mA	SMD	Inquiry
FCO-500	5032 4-SMD	0.0137 - 160 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1 - 45 mA	SMD	Inquiry
FCO-7C	7050 4-SMD	0.0137 - 166 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1 - 45 mA	SMD	Inquiry
FCO-700	7050 4-SMD	0.0137 - 166 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	CMOS	1 - 45 mA	SMD	Inquiry

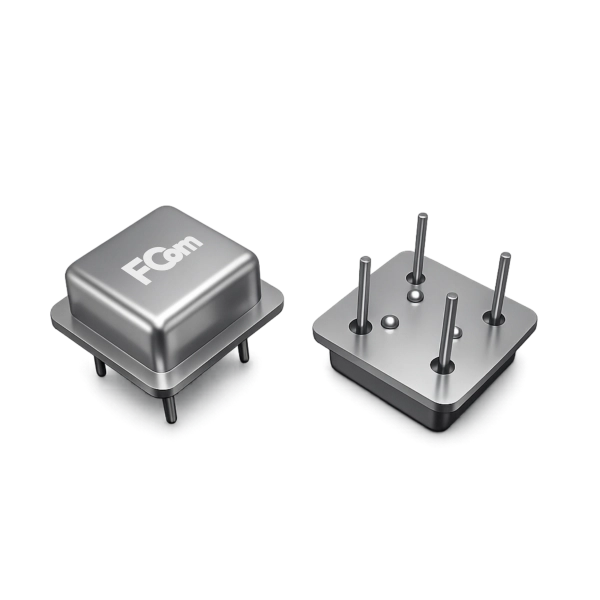

FCO-HL	8-DIP	0.25 - 180 MHz	3.3 V, 5.0 V	±25 ppm	-40 to +85℃	CMOS, TTL	10 - 50 mA	DIP	Inquiry

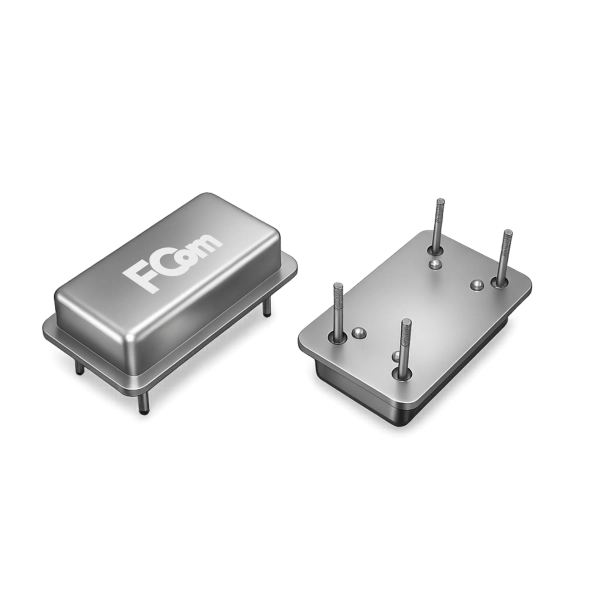

FCO-FL	14-DIP	0.25 - 180 MHz	3.3 V, 5.0 V	±25 ppm	-40 to +85℃	CMOS, TTL	10 - 50 mA	DIP	Inquiry

32.768 kHz & Standard XO Parametric Search

Picture	Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Mount	Contact
	FCO-2C-HP	2520 4-SMD	2.5 - 60 MHz	1.8 V, 2.5 V, 3.3 V	±10 ppm	-40 to +95℃	CMOS	4 - 6 mA	SMD	Inquiry
	FCO-3C-HP	3225 4-SMD	2.5 - 60 MHz	1.8 V, 2.5 V, 3.3 V	±10 ppm	-40 to +95℃	CMOS	4 - 6 mA	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Picture	Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Mount	Contact
	FCO-2C-UP	2520 4-SMD	1 - 50 MHz	0.9 V, 1.2 V, 1.5 V	±25 ppm	-40 to +85℃	CMOS	0.9 - 3 mA	SMD	Inquiry
	FCO-3C-UP	3225 4-SMD	1 - 50 MHz	0.9 V, 1.2 V, 1.5 V	±25 ppm	-40 to +85℃	CMOS	0.9 - 3 mA	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Picture	Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Mount	Contact
	FCO-2C-WT	2520 4-SMD	1.25 - 100 MHz	1.8 V, 2.5 V, 3.3 V	±30 ppm	-55 to +125℃	CMOS	5 - 15 mA	SMD	Inquiry
	FCO-3C-WT	3225 4-SMD	1.25 - 100 MHz	1.8 V, 2.5 V, 3.3 V	±30 ppm	-55 to +125℃	CMOS	5 - 15 mA	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Jitter	Mount	Contact
FCO-6P-PJ	2016 4-SMD	1 - 200 MHz	1.8 V, 2.5 V, 3.3 V	±15 ppm	-40 to +125℃	CMOS	25 - 40 mA	0.8 ps	SMD	Inquiry

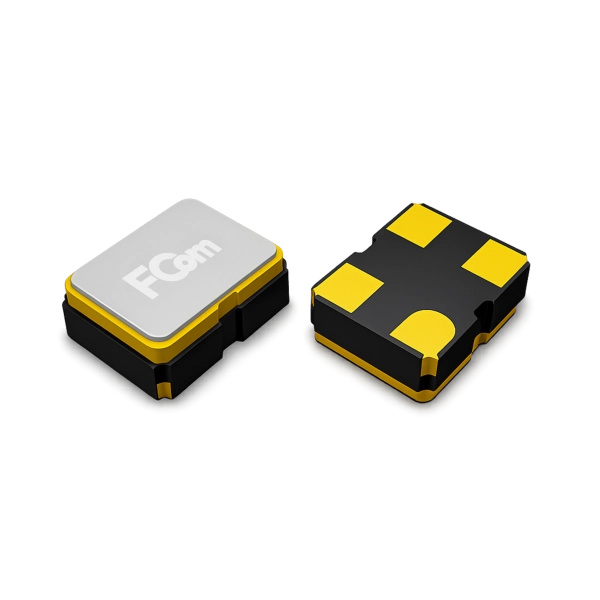

FCO-2P-PJ	2520 4-SMD	1 - 200 MHz	1.8 V, 2.5 V, 3.3 V	±15 ppm	-40 to +125℃	CMOS	25 - 40 mA	0.8 ps	SMD	Inquiry

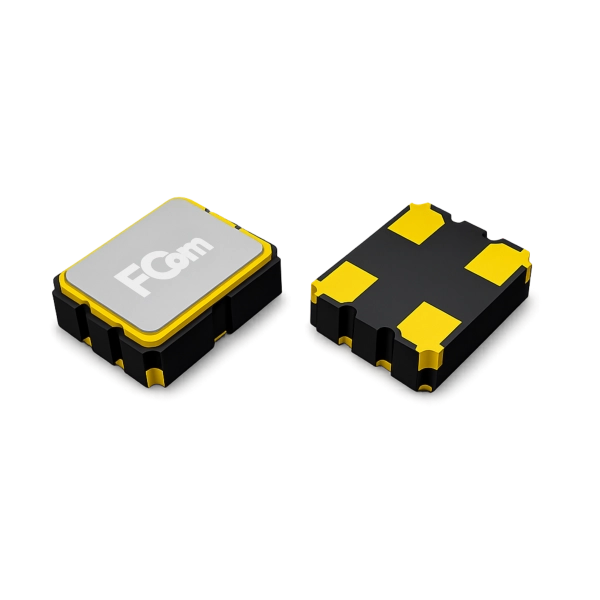

FCO-3P-PJ	3225 4-SMD	1 - 200 MHz	1.8 V, 2.5 V, 3.3 V	±15 ppm	-40 to +125℃	CMOS	25 - 40 mA	0.8 ps	SMD	Inquiry
FCO-5P-PJ	5032 4-SMD	1 - 200 MHz	1.8 V, 2.5 V, 3.3 V	±15 ppm	-40 to +125℃	CMOS	25 - 40 mA	0.8 ps	SMD	Inquiry

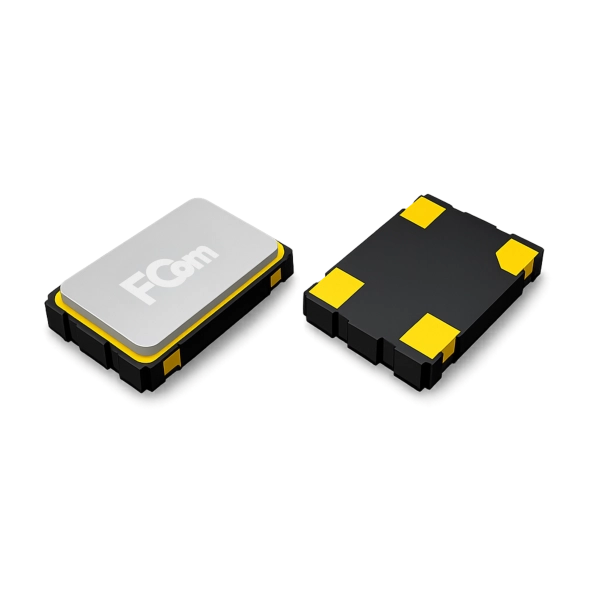

FCO-7P-PJ	7050 4-SMD	1 - 200 MHz	1.8 V, 2.5 V, 3.3 V	±15 ppm	-40 to +125℃	CMOS	25 - 40 mA	0.8 ps	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Jitter	Mount	Contact
FCO-2L	2520 6-SMD	13.5 - 220 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	L VPECL, L VDS, HCSL	20 - 55 mA	0.15 ps	SMD	Inquiry

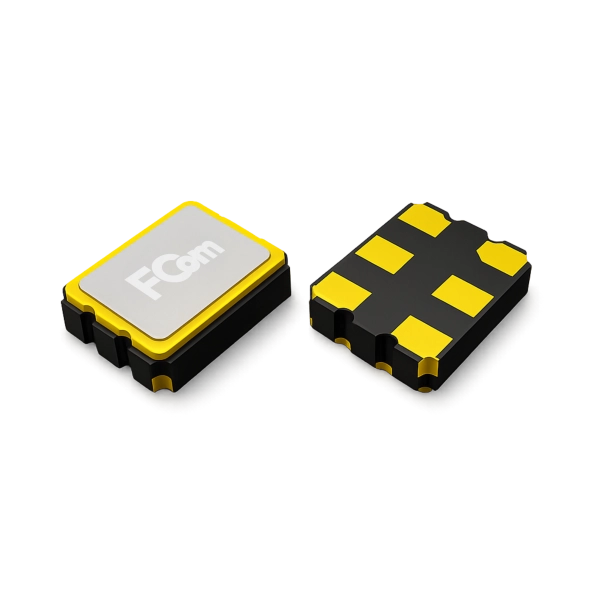

FCO-3L	3225 6-SMD	13.5 - 220 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	20 - 55 mA	0.15 ps	SMD	Inquiry

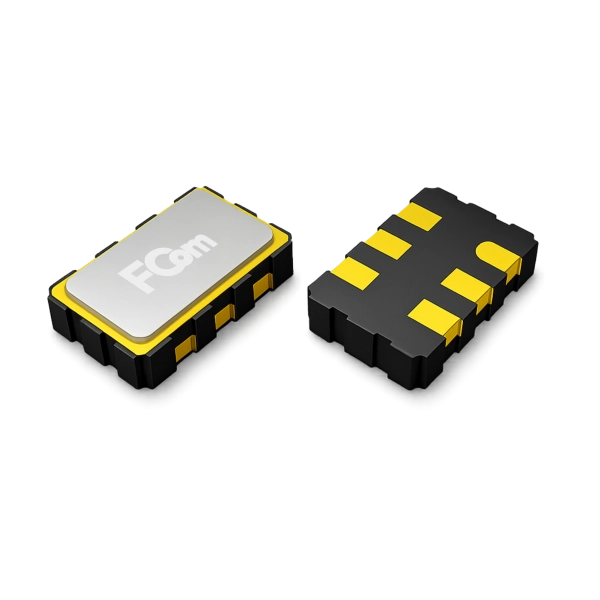

FCO-5L	5032 6-SMD	13.5 - 220 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	L VPECL, L VDS, HCSL	20 - 55 mA	0.15 ps	SMD	Inquiry
FCO-7L	7050 6-SMD	13.5 - 220 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	L VPECL, L VDS, HCSL	20 - 55 mA	0.15 ps	SMD	Inquiry
FCO-3L-PG	3225 6-SMD	10 - 1500 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +105℃	L VPECL, L VDS	35 - 50 mA	0.6 ps	SMD	Inquiry
FCO-5L-PG	5032 6-SMD	10 - 1500 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +85℃	L VPECL, L VDS	50 mA	0.6 ps	SMD	Inquiry
FCO-7L-PG	7050 6-SMD	10 - 1500 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +85℃	L VPECL, L VDS	50 mA	0.6 ps	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Jitter	Mount	Contact
FCO-2L-UJ	2520 6-SMD	100 - 220 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	L VPECL, L VDS, HCSL	25 - 65 mA	50 fs	SMD	Inquiry
FCO-3L-UJ	3225 6-SMD	100 - 220 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	L VPECL, L VDS, HCSL	25 - 65 mA	50 fs	SMD	Inquiry
FCO-5L-UJ	5032 6-SMD	100 - 220 MHz	1.8 V, 2.5 V, 3.3 V	±20 ppm	-40 to +125℃	L VPECL, L VDS, HCSL	25 - 65 mA	50 fs	SMD	Inquiry

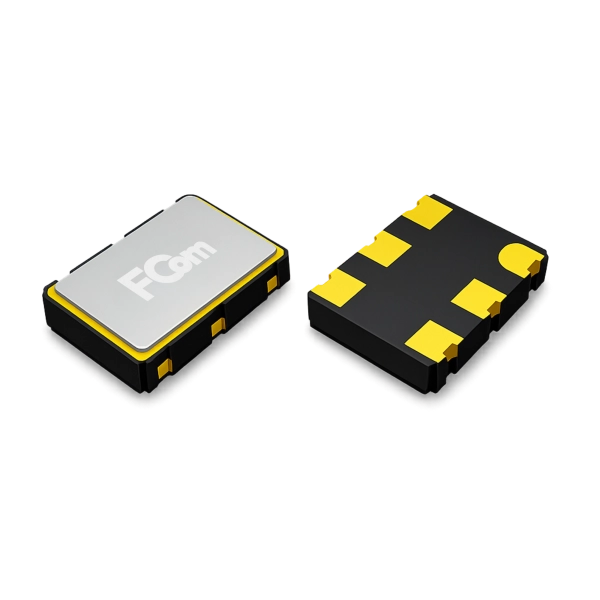

FCO-7L-UJ	7050 6-SMD	70 - 170 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +85℃	L VPECL	75 mA	100 fs	SMD	Inquiry
FCO-3P-UJ	3225 6-SMD	10 - 250 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +105℃	CMOS	45 - 50 mA	0.8 ps	SMD	Inquiry
FCO-5P-UJ	5032 6-SMD	10 - 250 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +85℃	CMOS	30 mA	0.6 ps	SMD	Inquiry
FCO-7P-UJ	7050 6-SMD	10 - 250 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +105℃	CMOS	30 mA	0.6 ps	SMD	Inquiry

32.768 kHz & Standard XO Parametric Search

Series	Package	Frequency Range	Supply Voltage	Tightest Stability	Temp. Range	Output	Input Current	Spread Options	Mount	Contact
FCO-2C-LE	2520 4-SMD	16 - 40 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	1.5 - 6 mA	Center 0.4 - 1% Down 0.8 - 2%	SMD	Inquiry
FCO-3C-LE	3225 4-SMD	16 - 40 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	1.5 - 6 mA	Center 0.4 - 1% Down 0.8 - 2%	SMD	Inquiry

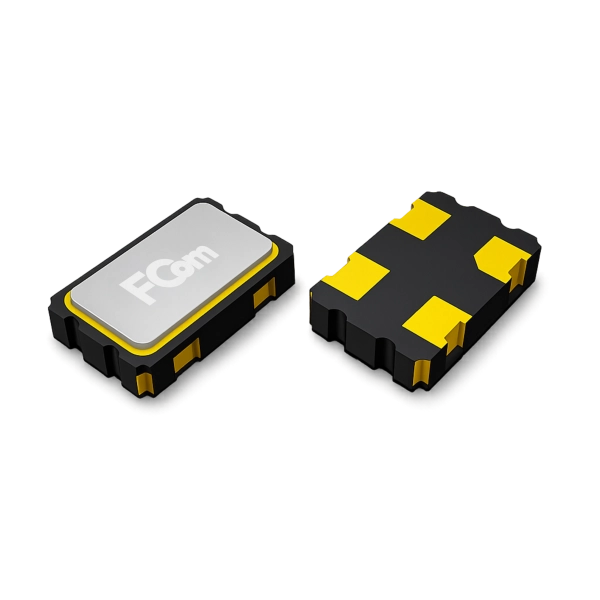

FCO-5C-LE	5032 4-SMD	16 - 40 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	1.5 - 6 mA	Center 0.5 - 1% Down 1 - 2%	SMD	Inquiry
FCO-7C-LE	7050 4-SMD	16 - 40 MHz	1.8 V, 2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	1.5 - 6 mA	Center 0.5 - 1% Down 1 - 2%	SMD	Inquiry
FCO-5P-LE	5032 4-SMD	3 - 200 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	20 - 30 mA	Center 0.125 - 2% Down 0.25 - 4%	SMD	Inquiry
FCO-7P-LE	7050 4-SMD	3 - 200 MHz	2.5 V, 3.3 V	±25 ppm	-40 to +125℃	CMOS	20 - 30 mA	Center 0.125 - 2% Down 0.25 - 4%	SMD	Inquiry

Matched a series? Here's what comes next.

Once you’ve narrowed it down, the real work is confirming it works on your board not just on the datasheet. To advance your prototype manufacturing, we offer the following support:

Phase 01 // Product Selection

Download Selection Guide

Compare 49 crystal oscillator series across 10 product groups by package, frequency, supply voltage, stability and output.

Phase 02 // Engineering

Validate Circuit Match

Submit your target parameters and IC model. Our laboratory verifies drive-level margins, startup conditions, and negative resistance stability.

Full-Cycle Engineering Services

Beyond standard verification, our laboratory provides complete technical support throughout your entire product lifecycle:

Contact an FCom Engineer
