High Precision Series

When Your Timing Budget Has No Room for Drift

Engineered for mission-critical applications that cannot tolerate frequency drift over time, temperature, or voltage variations. Every parts built to tighter stability windows where every ppm counts.

Stability Grades Across the Series

OCXO
Highest frequency stability
±3 ppb to ±50 ppb
TCXO
Temperature-compensated precision
±0.05 ppm to ±2 ppm
Precision XO
Cost-efficient precision
Down to ±10 ppm
100% FINAL ELECTRICAL TESTING
Verified Before Shipment
Every oscillator is electrically verified against its specified frequency-performance limits and key electrical parameters before shipment.
*Additional screening and test documentation are available according to project requirements.

Frequency Stability Is More Than One Number

Total frequency performance include initial accuracy, temperature stability, supply variation, load variation and aging.
Initial Frequency Accuracy
Stability over Temperature
Supply Voltage Stability
Load Stability
Aging

High Precision Oscillator Portfolio

Compare standard XO, TCXO and OCXO configurations by stability, frequency, package and output.
PicturePart SeriesTypeFrequency RangeStability OptionsPackageOutputSupply VoltageContact
XO — Crystal Oscillators
Crystal oscillator FCO-2C-HP FCO-2C-HP XO2.5 – 60 MHz±10 ppm2520 4-SMDCMOS1.8V / 2.5V / 3.3V Inquiry
Crystal oscillator FCO-3C-HP FCO-3C-HP XO2.5 – 60 MHz±10 ppm3225 4-SMDCMOS1.8V / 2.5V / 3.3V Inquiry
View All XO products
TCXO — Temperature-Compensated Oscillators
TCXO FVT-5S-HP FVT-5S-HP TCXO10 – 52 MHz±50 ppb5032 4-SMDClipped Sine Wave, CMOS2.5V / 3.3V Inquiry
TCXO FVT-7S-HP FVT-7S-HP TCXO5 – 52 MHz±50 ppb7050 4-SMD Clipped Sine Wave, CMOS2.5V / 3.3V Inquiry
View All TCXO products
OCXO — Oven-Controlled Oscillators

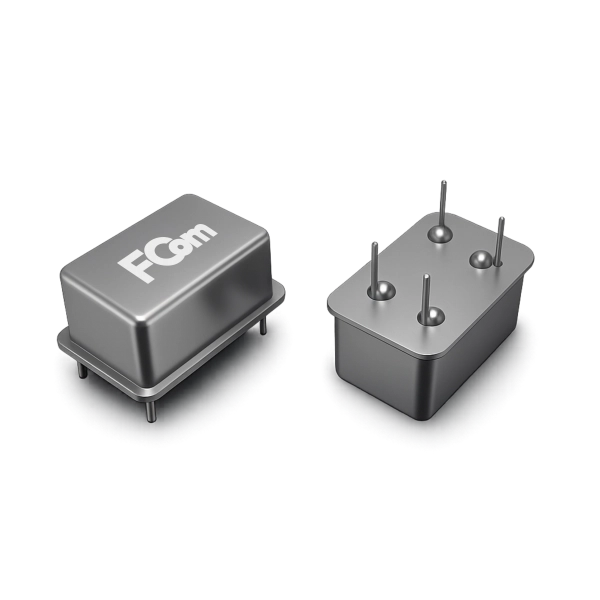

OCXO FOC-1D FOC-1D OCXO10 – 40 MHz±50 ppb14 Pin DIPRectangular, Sine Wave3.3V / 5V Inquiry

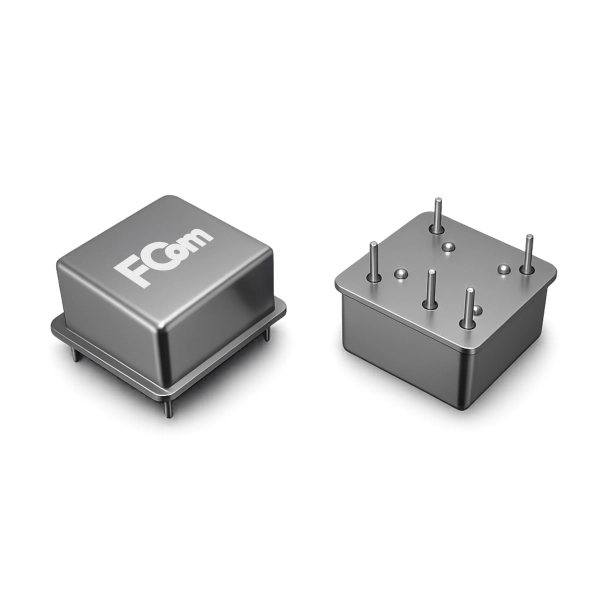

OCXO FOC-2D FOC-2D OCXO5 – 40 MHz±5 ppb20×20 5 PinHCMOS, Sine Wave3.3V / 5V Inquiry

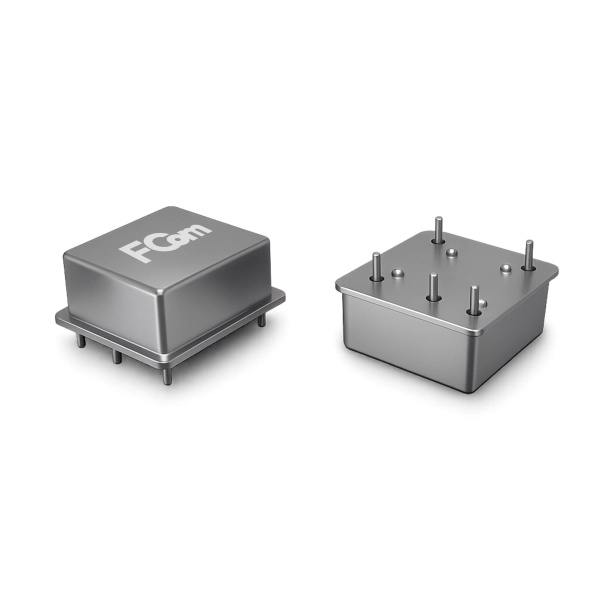

OCXO FOC-3D FOC-3D OCXO5 – 40 MHz±3 ppb25x25 5 PinTTL, Sine Wave3.3V / 5V Inquiry

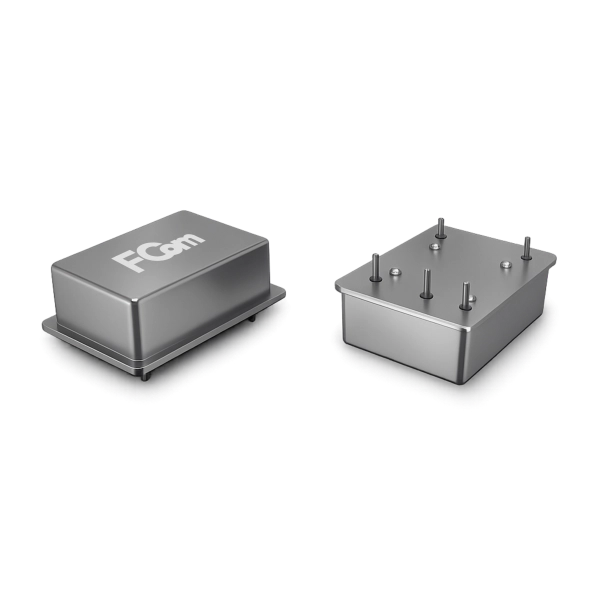

OCXO FOC-4D FOC-4D OCXO5 – 40 MHz±3 ppb36×27 5 PinTTL, Sine Wave3.3V / 5V Inquiry
OCXO FOC-5S FOC-5S OCXO10 – 40 MHz±10 ppb14×9 6-SMDHCMOS, Sine Wave3.3V / 5V Inquiry

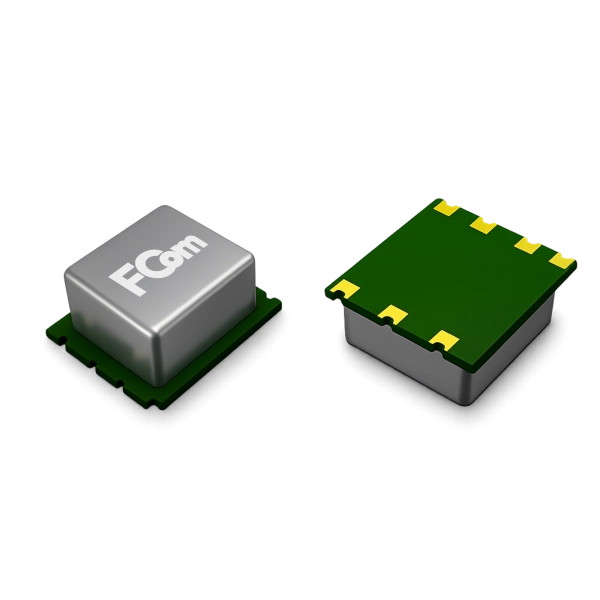

OCXO FOC-6S FOC-6S OCXO5 – 40 MHz±5 ppb25×22 7-SMDHCMOS3.3V / 5V Inquiry

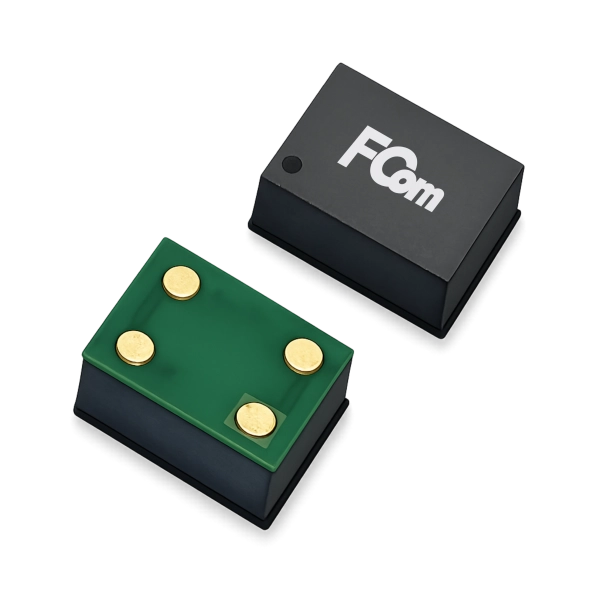

OCXO FOC-7S FOC-7S OCXO10 – 40 MHz±5 ppb9×7 4-SMDHCMOS3.3V Inquiry

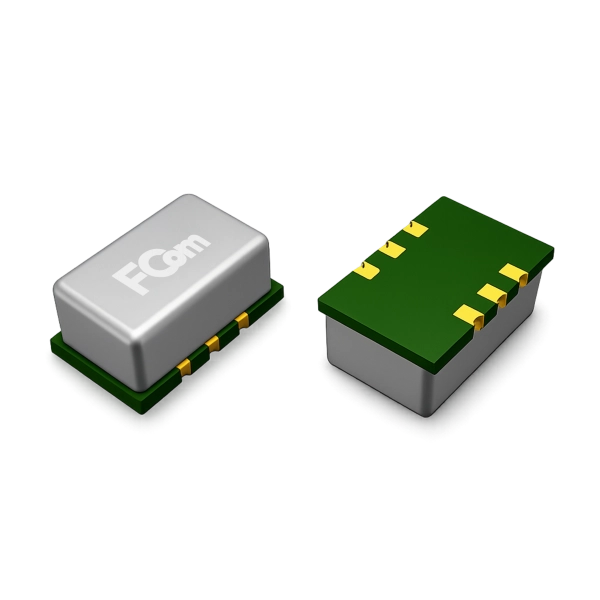

OCXO FOC-5S-LN FOC-5S-LN OCXO10 – 40 MHz±5 ppb14×9 6-SMDRectangular3.3V / 5V Inquiry
View All OCXO products
For complete mechanical drawings and ordering codes, contact to download the product catalog.
Contact Us

Technical Applications

The applications that drive the specification — and why standard stability isn’t enough.
Need help selecting the right stability grade?
Contact our engineers
image-129
GNSS Timing & Holdover
Design Challenge

Limiting time error while a local clock holds over during GNSS loss.

Recommended Solution

Select a TCXO or OCXO to meet the system's holdover error budget.

Key Parameters

  • Temperature Stability
  • Aging
  • Warm-Up & Retrace (OCXO)
  • Phase Noise
  • System Holdover Error Budget



View Application Guide (PDF) →

image-130

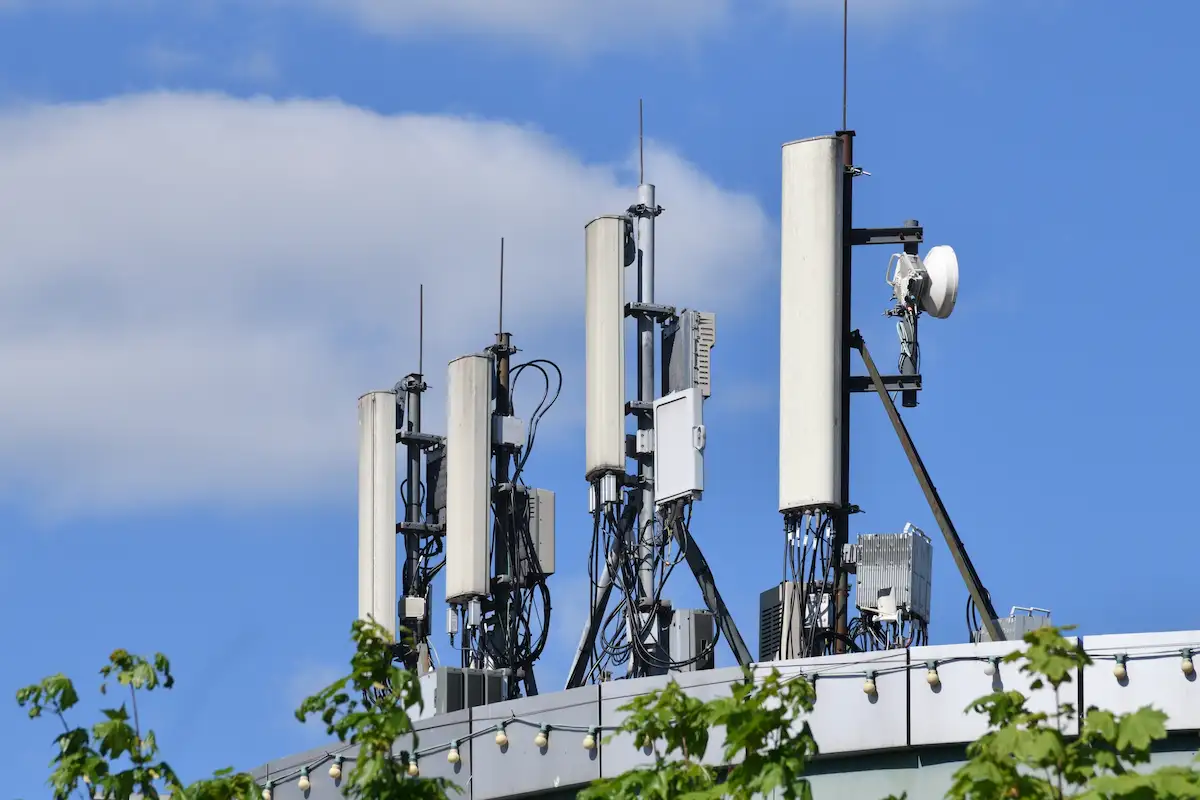

Wireless RAN & Base Stations
Design Challenge

Keeping base-station references stable over temperature and aging.

Recommended Solution

Match a TCXO or OCXO to the DPLL and system timing error budget.

Key Parameters

  • Temperature Stability
  • Aging
  • Warm-Up Time
  • Phase Noise
  • Reference Frequency & Output



View Application Guide (PDF) →

image-131

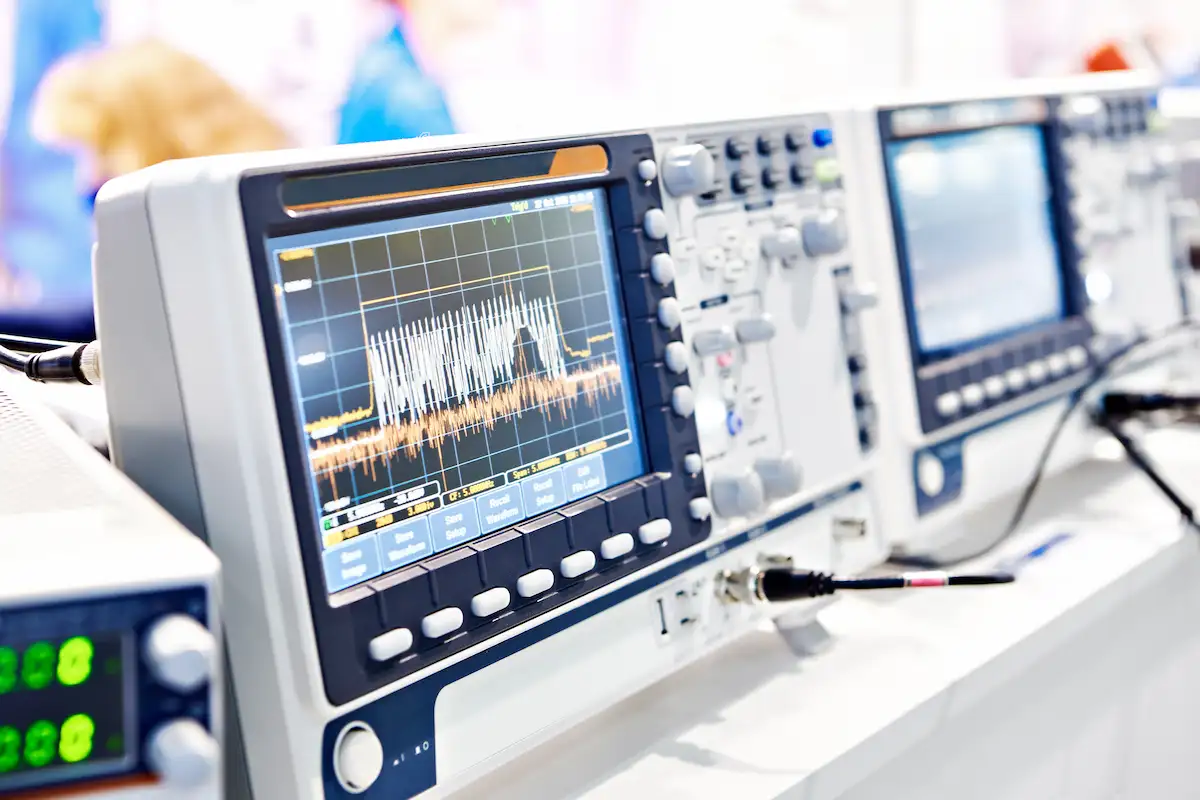

Precision Test & Calibration

Design Challenge

Preserving timebase accuracy and repeatability between calibrations.

Recommended Solution

Select an OCXO or TCXO within the instrument's uncertainty budget.

Key Parameters

  • Initial Frequency Accuracy
  • Temperature Stability
  • Aging
  • Warm-Up & Retrace (OCXO)
  • Phase Noise




image-132
UAV & Autonomous Navigation
Design Challenge

Keeping GNSS references stable through temperature changes.

Recommended Solution

Match a TCXO to the GNSS input, temperature and vibration limits.

Key Parameters

  • Temperature Stability
  • Aging
  • Phase Noise
  • Vibration Sensitivity
  • Output Level & Load



View Application Guide (PDF) →

Find the Right High-Precision Oscillator

Compare standard products, review technical specifications, or submit your requirements for engineering support.
STANDARD PRODUCTS

Compare High-Precision Oscillators

Review available XO, TCXO and OCXO series by frequency, stability, package, output and supply voltage.
View Product Portfolio
TECHNICAL RESOURCES

Download the Series Guide

Review available series, electrical specifications, mechanical drawings and ordering information in one document.
Download High Precision Guide
ENGINEERING SUPPORT

Need a Custom Specification?

Send us your target frequency, required stability, operating temperature, output, supply voltage and package requirements for engineering review.
