TCXO vs OCXO: Stability, Aging, Power and Holdover

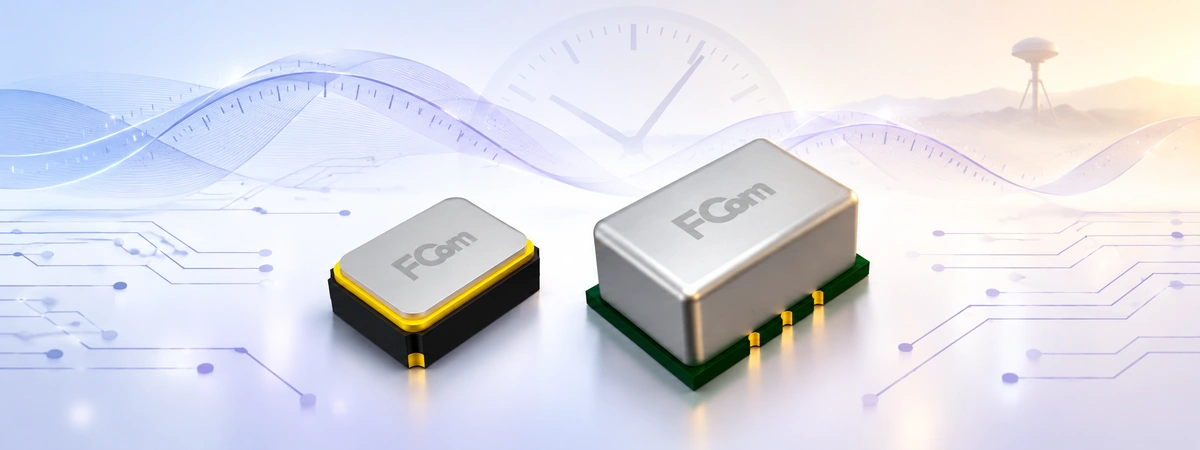

FCom TCXO and OCXO side by side with clock, waveform and outdoor antenna imagery

A TCXO corrects temperature-related frequency changes electronically. An OCXO uses a heater to keep its resonator near a controlled temperature. The selection comes down to the frequency and timing error your system can tolerate, together with available power, startup time and board space.

Which should you choose? Start with a TCXO when its guaranteed performance meets the requirement with less power and space. Consider an OCXO when tighter stability or holdover requirements justify its heater demand and settling time. Compare specific configurations under the same conditions.

How temperature control differs

A temperature-compensated crystal oscillator (TCXO) combines a resonator with circuitry that adjusts its frequency as temperature changes. Compensation reduces the temperature dependence; it does not remove initial offset, aging or every environmental effect. Precision compensated designs can have ppb-level temperature specifications. [1]

An oven-controlled crystal oscillator (OCXO) thermally regulates the resonator and temperature-sensitive circuitry. Once settled, this can provide tighter stability, but the oven needs power and remains affected by heat transfer to its surroundings. Neither architecture alone locks a clock to GNSS, PTP or another external reference. [2]

TCXO vs OCXO: practical comparison

Selection tendencies, not universal product limits
ConsiderationTCXOOCXO
Temperature responseElectronic compensation reduces frequency change.An oven reduces the resonator’s exposure to ambient changes.
Stability requirementSuitable when the selected compensation grade meets the budget.Often chosen for demanding frequency stability after settling.
Power budgetNo oven heater; attractive for portable equipment.Check maximum startup demand and settled consumption separately.
Readiness after power-upElectrical startup and frequency settling still take time.A clock waveform may appear before the specified warm-up endpoint.
Aging and correctionReview aging interval and available adjustment range.Oven control does not eliminate aging or calibration requirements.
Size and thermal integrationSmall packages support compact board layouts.Allow for package height, heat flow and heater supply capacity.
HoldoverUsable if the complete system meets the outage requirement.A common candidate for stricter holdover budgets; validation remains necessary.

Performance ranges overlap. A device category does not define one guaranteed stability, power consumption, noise floor or holdover duration.

Read the specifications as separate requirements

Initial accuracy and temperature stability

Record initial tolerance at its reference temperature, then examine the temperature specification over the required range. Include supply, load and aging effects only when they are outside an already inclusive limit. Keep ± limits distinct from peak-to-peak values.

Unit check: 1 ppm equals 1,000 ppb. For an assumed 10 MHz carrier, a 0.5 ppm offset is 5 Hz and a 10 ppb offset is 0.1 Hz. These conversions do not assign a rating to either oscillator type.

Aging and available adjustment

Aging describes frequency change with time under unchanged environmental conditions. Read both the interval and any prior operating time: a daily limit after stabilization and a first-year limit are different specifications. Do not extrapolate one into the other without a supported model. [3]

Where frequency adjustment is provided, verify that its range and resolution accommodate initial correction and expected lifetime drift.

Startup, warm-up and power

Separate time to a valid output from time to the required frequency error. For a warm-up specification, record starting temperature, supply, elapsed time, error limit and the frequency reference used to define that error. A deviation from the device’s later settled frequency is not automatically an accuracy limit relative to nominal frequency. [3]

Check heater demand during startup and steady operation across the required ambient range. The power supply must support the specified maximum, including cold starts. Evaluate whether repeated power cycling leaves enough operating time to benefit from the OCXO’s settled performance. [6]

Phase noise, jitter and short-term stability

Compare phase-noise values at matching carrier and offset frequencies, with the same typical or guaranteed basis. Integrated RMS phase jitter needs its integration limits and measurement conditions. Allan deviation needs the averaging time, τ, and test conditions. Temperature stability alone establishes none of these noise metrics. [4]

Holdover: translate frequency error into time error

Holdover describes operation after synchronization is lost. Assess the initial time offset, residual frequency error, temperature history, aging prediction and control method together. The requirement must state both the permitted time error and the reference outage duration. [5]

Constant-error example: let fractional frequency error y remain constant, with zero initial time offset.

Accumulated time error = y × elapsed time

At 10 ppb for one hour: 10 × 10−9 × 3,600 s = 36 µs. At 1 ppb, the result is 3.6 µs.

Calculated time error for constant 10 ppb and 1 ppb frequency offsets Time in minutes runs from zero to sixty on the horizontal axis. Time error in microseconds runs from zero to forty on the vertical axis. With zero starting time error, a constant positive 10 ppb offset produces 36 microseconds after one hour; 1 ppb produces 3.6 microseconds. These are calculated examples, not oscillator measurements. Time error from a constant frequency offset Calculated model: zero initial time error; no changing temperature, drift or noise Time error (µs) 403020100 015304560 Elapsed time (minutes) 10 ppb → 36 µs 1 ppb → 3.6 µs Positive offsets shown; negative offsets reverse the time-error sign.
Figure 1. Calculated frequency-offset scenarios. The lines represent an ideal constant-error model, not measured TCXO or OCXO holdover.

For a 1 µs time-error allowance over 3,600 seconds, the constant-offset contribution alone requires an error magnitude below about 0.278 ppb. Any starting offset or other error consumes part of that allowance.

When frequency error changes, accumulated time error is its time integral. A static temperature-stability limit therefore cannot establish the actual outage performance. Test reference loss and recovery with the intended thermal environment, control settings and prior operating time. [5]

Choose for the application, then validate the board

Portable receivers and intermittently powered equipment favor the TCXO approach when its limits are sufficient. Continuously powered timing nodes and precision instruments may justify an OCXO. In both cases, the required output frequency and interface come from the system clock plan.

  1. Write the acceptance limits: total frequency error, noise, readiness delay and any outage/time-error requirement.
  2. Confirm integration: supply, output levels and loading, tuning interface, footprint, height and available startup current.
  3. Reproduce the environment: measure local enclosure temperature and exercise cold starts, thermal ramps, airflow changes and supply disturbances.
  4. Measure the result: record valid-output time, frequency settling, peak consumption and time error through reference loss and recovery.

Outdoor air temperature can differ from the oscillator’s surroundings because of solar heating and nearby electronics. Also separate mechanical shock survival from frequency sensitivity during vibration; an oven is not evidence of mechanical immunity. [6]

Frequently asked questions

Will an OCXO always be more accurate?

No. Compare the total error under the required conditions. Tighter temperature stability cannot replace adequate initial calibration, aging allowance or a suitable installation.

Can a TCXO support holdover?

Yes, where its oscillator and control system meet the specified outage budget. The TCXO label does not define a guaranteed duration.

Does an OCXO replace GNSS or PTP synchronization?

No. It provides a local frequency source. External time alignment still needs the receiver or protocol functions and a suitable control loop.

Can I exchange a TCXO for an OCXO on the same board?

Check the complete interface and thermal design first. Heater current, settling time, package dimensions, output and tuning behavior may require hardware or firmware changes.

FCom products and selection guides

Confirm guaranteed limits in the current specification for the complete ordering code. Series options do not necessarily coexist in one configuration.

Ask FCom to review your timing budget

Provide the frequency, temperature profile, supply, output, package constraints and startup/steady-state power budgets. For holdover, include outage duration, allowed time error, synchronization method and operating time before reference loss.

Technical references

  1. Microchip / Vectron: Oscillator Terminology Definitions (PDF).
  2. NIST: Handbook of Frequency Stability Analysis, SP 1065, July 2008 (PDF).
  3. Microchip / Vectron: Simplifying Holdover Design in Synchronization Applications (PDF).
  4. Microchip / Vectron: Oven Controlled Crystal Oscillator Operation (PDF).
