FSF-F11/12 Through-Hole SAW Filters

Through-Hole · DIP-F11 / DIP-F12

Compare 27 through-hole SAW filter models in DIP-F11 and DIP-F12 packages. Review center frequency, bandwidth, insertion loss and stopband attenuation, then request the latest datasheet for your selected part number.

  • 27 models
  • 18 center frequencies
  • Through-hole mounting

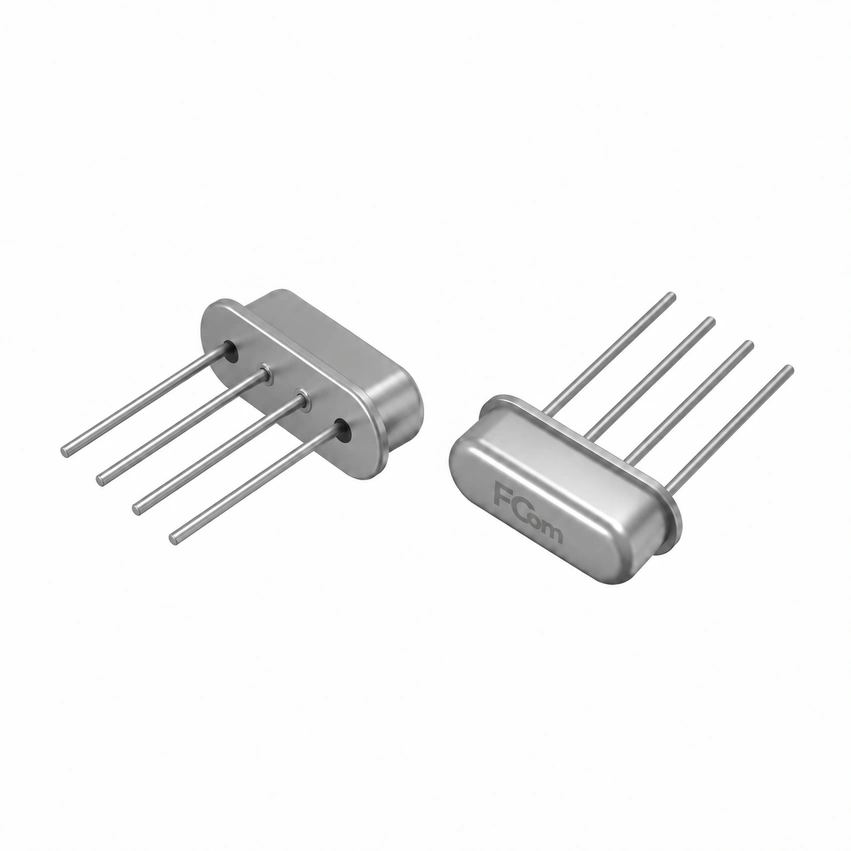

Lead-side and cover views of an FCom metal-can through-hole SAW filter
Through-hole package views: lead side (left) and cover (right).

Model Catalog

Explore 27 models at discrete center frequencies from 110.0 to 815.5 MHz. Compare the complete specifications listed for each part number, including models that share the same center frequency.

On smaller screens, scroll horizontally to view all specifications.

FSF-F11/12 · Model comparison
Complete P/N Series Package Center Frequency (MHz) Bandwidth (MHz) Insertion Loss (dB) Stopband Attenuation (dB) Mount Technical File
FSFDF11-110M-1M152-4-40FSFDF11DIP-F11110.01.1524.040.0DIPRequest PDF
FSFDF11-110M-360k-3-40FSFDF11DIP-F11110.00.363.040.0DIPRequest PDF
FSFDF12-110M-300k-3.5-30FSFDF12DIP-F12110.00.33.530.0DIPRequest PDF
FSFDF12-110M-360k-3-40FSFDF12DIP-F12110.00.363.040.0DIPRequest PDF
FSFDF11-110M592-1M152-3.5-40FSFDF11DIP-F11110.5921.1523.540.0DIPRequest PDF
FSFDF12-110M592-300k-3.5-40FSFDF12DIP-F12110.5920.33.540.0DIPRequest PDF
FSFDF11-161M-6M-2-50FSFDF11DIP-F11161.06.02.050.0DIPRequest PDF
FSFDF11-171M-10M-4.5-40FSFDF11DIP-F11171.010.04.540.0DIPRequest PDF
FSFDF11-315M-4M-3-40FSFDF11DIP-F11315.04.03.040.0DIPRequest PDF
FSFDF11-380M-6M-2-50FSFDF11DIP-F11380.06.02.050.0DIPRequest PDF
FSFDF11-410M-6M-1-50FSFDF11DIP-F11410.06.01.050.0DIPRequest PDF
FSFDF11-410M-6M-2-40FSFDF11DIP-F11410.06.02.040.0DIPRequest PDF
FSFDF11-433M-6M-2-40FSFDF11DIP-F11433.06.02.040.0DIPRequest PDF
FSFDF11-433M92-4M-2-40FSFDF11DIP-F11433.924.02.040.0DIPRequest PDF
FSFDF11-446M-6M-2-50FSFDF11DIP-F11446.06.02.050.0DIPRequest PDF
FSFDF11-446M-6M-2-60FSFDF11DIP-F11446.06.02.060.0DIPRequest PDF
FSFDF11-446M-6M-2.3-40FSFDF11DIP-F11446.06.02.340.0DIPRequest PDF
FSFDF11-457M-6M-3.5-40FSFDF11DIP-F11457.06.03.540.0DIPRequest PDF
FSFDF11-462M-6M-2-50FSFDF11DIP-F11462.06.02.050.0DIPRequest PDF
FSFDF11-465M-5M-2.1-40FSFDF11DIP-F11465.05.02.140.0DIPRequest PDF
FSFDF11-465M-6M-2-40FSFDF11DIP-F11465.06.02.040.0DIPRequest PDF
FSFDF11-465M-6M-2-50FSFDF11DIP-F11465.06.02.050.0DIPRequest PDF
FSFDF11-522M5-25M-3-60FSFDF11DIP-F11522.525.03.060.0DIPRequest PDF
FSFDF11-547M5-25M-3-60FSFDF11DIP-F11547.525.03.060.0DIPRequest PDF
FSFDF11-591M-8M-2.5-40FSFDF11DIP-F11591.08.02.540.0DIPRequest PDF
FSFDF11-785M5-34M-2-30FSFDF11DIP-F11785.534.02.030.0DIPRequest PDF
FSFDF11-815M5-34M-2-50FSFDF11DIP-F11815.534.02.050.0DIPRequest PDF

Request PDF opens your email application with the selected complete part number in the subject.

Across the FCom product portfolio, published product information is intended to support preliminary selection and technical evaluation. Final design and procurement decisions should be based on the latest model-specific datasheet and applicable specifications, including parameter definitions, minimum, typical and maximum values, test conditions and operating limits. Series-level ranges describe the available product options and do not represent the performance limits of any individual model.

Selection Notes

Shortlist by frequency and package, then compare the electrical requirements for your signal path.

Frequency & Bandwidth

Select the required center frequency and review the bandwidth of each candidate. Use the model-specific datasheet to confirm the bandwidth definition, reference level and test conditions.

Insertion Loss & Rejection

Compare insertion loss against your signal budget and stopband attenuation against the required rejection frequencies. Review the applicable minimum, typical and maximum limits in the selected datasheet.

Complete Part Number

Keep the full part number when requesting documentation or a quotation. Models at the same frequency may differ in bandwidth, insertion loss, stopband attenuation or package.

Integration Notes

Source & Load Conditions

Use the source and load conditions specified for the selected model. Review any required matching network before connecting the filter to the surrounding circuit.

Through-Hole Footprint

Confirm the mechanical drawing, lead spacing, mounting-hole pattern and pin assignment for the complete part number. Check DIP-F11 and DIP-F12 independently before finalizing the PCB.

Board-Level Verification

Evaluate insertion loss, passband response and stopband rejection on the intended board with the actual source, load and matching network across the required operating conditions.

For design support, share your selected part number, target frequency, bandwidth, insertion-loss budget, rejection requirements, source and load conditions, and operating temperature range with our engineering team.

Frequently Asked Questions

Which center frequencies are included?

The catalog contains 27 models at 18 discrete center frequencies, from 110.0 to 815.5 MHz. This range describes the listed product options, not continuous frequency coverage or the passband of an individual filter.

Why are several models listed at the same center frequency?

Models at the same center frequency can differ in package, bandwidth, insertion loss or stopband attenuation. Compare the complete part number and all listed parameters before requesting the corresponding datasheet.

How should I compare the bandwidth values?

Use the catalog bandwidth values for preliminary selection. Refer to the selected model’s latest datasheet for the bandwidth definition, reference level, test conditions and applicable limits before comparing detailed filter responses.

Are DIP-F11 and DIP-F12 interchangeable?

Confirm the mechanical drawing, lead spacing, pin assignment and electrical specifications for each complete part number. Do not assume that DIP-F11 and DIP-F12 packages share the same footprint, pinout or matching requirements.

How do I request a datasheet or design support?

Select Request PDF beside a model to open an email to FCom with that complete part number in the subject. For design support, include your target frequency, bandwidth, insertion-loss budget, rejection requirements, source and load conditions, and operating temperature range.
